2026 MODEL YEAR

XPRESS CRAPPIE BOATS

HYPER-LIFT CRAPPIE SERIES

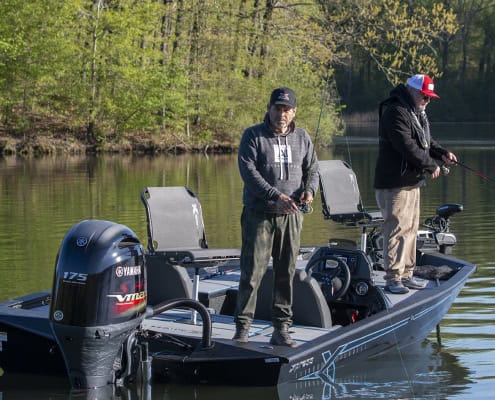

Xpress Boats, the manufacturer of the “original” all-welded aluminum boat, expanded its Hyper-Lift Crappie Series by introducing the H20C. This high-performance, economically priced, 20-foot crappie-catching machine is loaded to the top of the livewell with must-have features, starting with new, ergonomically-designed sport seating, which offers more comfort and support while running the Yamaha outboard. The expanded front deck, with 3-across seating, increased storage capacity, and new drop-in liners, is a bonus for anglers of all ages. Best-in-class standard features include a Humminbirdgraph, Minn Kota trolling motor, 6” Atlas jack plate, and hydraulic steering. The Hyper-Lift Crappie Series is your ticket to affordable crappie adventure.

The above boat is shown with optional Appearance Package.	H20C w/Yamaha VF175LB $41,595* Includes SeaStar Upgrade*
The above boat is shown with optional Appearance Package.	H18C w/Yamaha VF115LB $32,995
The above boat is shown with optional Appearance Package.	H17C w/Yamaha F70LB $29,795

Scroll or Rotate to see specs

SPECIFICATIONS

	H20C	H18C	H17C
Length	20′	17’10”	17′
Bottom	67″	67″	67″
Beam	93″	93″	93″
Sides	22″	22″	22″
Transom Height	22″	22″	22″
Fuel Tank Capacity	36 gal.	18 gal.	18 gal.
Approximate Weight	1,400 lb.	1,340 lb.	1,325 lb.
Max Wt./Per/Mo/GR	1,550 lb.	1,400 lb.	1,300 lb.
Total Wt. Per Cap	4/700 lb.	4/675 lb.	4/675 lb.
Aluminum – 5052 Gauge	0.125	0.125	0.125
Maximum HP	175	115	90
Overall Package Length	25′	23’2″	22’2”
BackTrack Trailer Model	AW20-A	AW18-A	AX17-A

Overall package length includes trailer and engine
All measurements are approximate
Photos may include optional equipment
Nationally advertised price does not include TTL, freight and rigging

AVAILABLE COLORS

SEADEK OPTIONS

Click the + below to expand and view additional information.

Standard Features

Hyper-Lift Hull

All-Welded Construction

Longitudinal Rib Construction

Unibody Injected Foam Construction

Choice of Charcoal, White, Silver, Gulfsand or Camo Paint

Xtreme Coat Liner

Seadek Liner on Decks

Soft Sided Cooler w/Logo

X-Wing Fiberglass Console & Tinted Windshield

Recessed Trolling Motor Foot Well w/SS Tool Holder

Recessed Bow Light

2 Aero X Mesh Seats w/13” Extensions

Xtreme Coat Under Lids and in Seat Box

NEW Stainless Boarding Step

Front Deck Lockable Storage Boxes w/Liners

2 Rear Deck Boxes w/Tackle Tray Storage

8 Gauge Trolling Motor Harness

Aerated Livewell in Rear Deck

Bilge Pump

Bucket Driver and Passenger Seats w/Storage Box

SeaDek Center Seat

Humminbird Helix 5 Graph

Minn Kota 45 Edge Trolling Motor

2 Bank Charger

6” Jackplate (H20C Only)

Baystar Hydraulic Steering (H20C Only)

Lockable Rod Box

Tach, Trim, Fuel and Water PSI Gauges

BackTrack Single Axle Aluminum Trailer w/Alum Wheels

Options

Charger

2 Bank to 3 Bank Upg.

Console

AM/FM Radio w/ Bluetooth & Speakers

Controls

Blinker Trim (Requires Hydraulic Steering)

Dual Blinker Trim (Requires Hydraulic Steering)

Hot Foot

Pre-Rig Flush Mount Control Box w/ Cables

Graphs

Garmin

Humminbird

Hardware

Livewell Divider

Stainless Fold Down Deck Cleats (4)

Jack Plate

6” Jack Plate

6” Atlas Hydraulic

10” (Upgrade from 6”)

10” (H20 Only)

10” Atlas Hydraulic (H20 Only)

6” Hyd JP to 10” Hyd JP Upg.

Ladder

Permanent Ladder

Plumbing

Automatic Bilge Pump

Recirculating Livewell/Pump Out

Pro Livewell Oxygenator

Prop

Upgrade to PowerTech SS SM/Med Hub Prop

Upgrade to PowerTech SS Large Hub Prop

SeaDek

SeaDek Liner for Cockpit Area (H17C/H18C/H20C)

Seat

Center Folddown Seat for Tuck & Roll

Coin Box w/Organizer and SeaDek on Lid (H20C Only)

Euro Style Fishing Seat w/ Small Seat Pole

Exchange AeroX for Euro Seat

Shallow Water Anchors

MinnKota Raptor

Power-Pole Blade

Steering

BayStar Plus Hydraulic (150HP or Less)

BayStar Plus Hydraulic (150LD or F200LD)

SeaStar Hydraulic Tilt (Greater Than 150HP)

Upgr. to SeaStar Hydraulic Tilt from Hydraulic (Greater Than 150HP)

Seastar Hydraulic Tilt (150LD or F200LD)

Trolling Motors

Garmin

Minn Kota

Power-Pole Move

Wiring

6 Gauge TM Harness (Reg. Upg. For All 80lb & Larger TM’s)

Lights in Livewells, Storage Boxes & Interior

BackTrack Trailer Options

Lighted Logo Trailer Step (Both Sides)

Aluminum Spare Tire and Mount

Galvanized Spare Tire and Mount

Aluminum Wheel Upgrade (Per Axle)

Swing Away Tongue

Packages

Appearance Package H-Crappie (Must Upg. To Euro Fish Seat)
Custom SeaDek Liner, Matching Seat Trim, and Matching Graphics. Available in Lime, Bahama, Red, Blue and Seafoam. Click here to learn more.

H-Series Electronics Package
3 Bank Charger Upgrade, Minn Kota Max 70 Trolling Motor Upgrade, and Humminbird Helix 7 Graph Upgrade.
